POE Power Meter

Device designed to measure the power consumption of 2 antennas installed on the roof, and temperature (under developement).

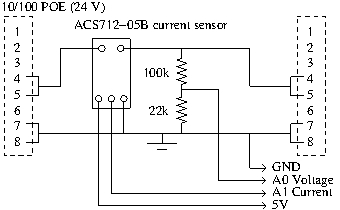

Shema of the POE power meter:

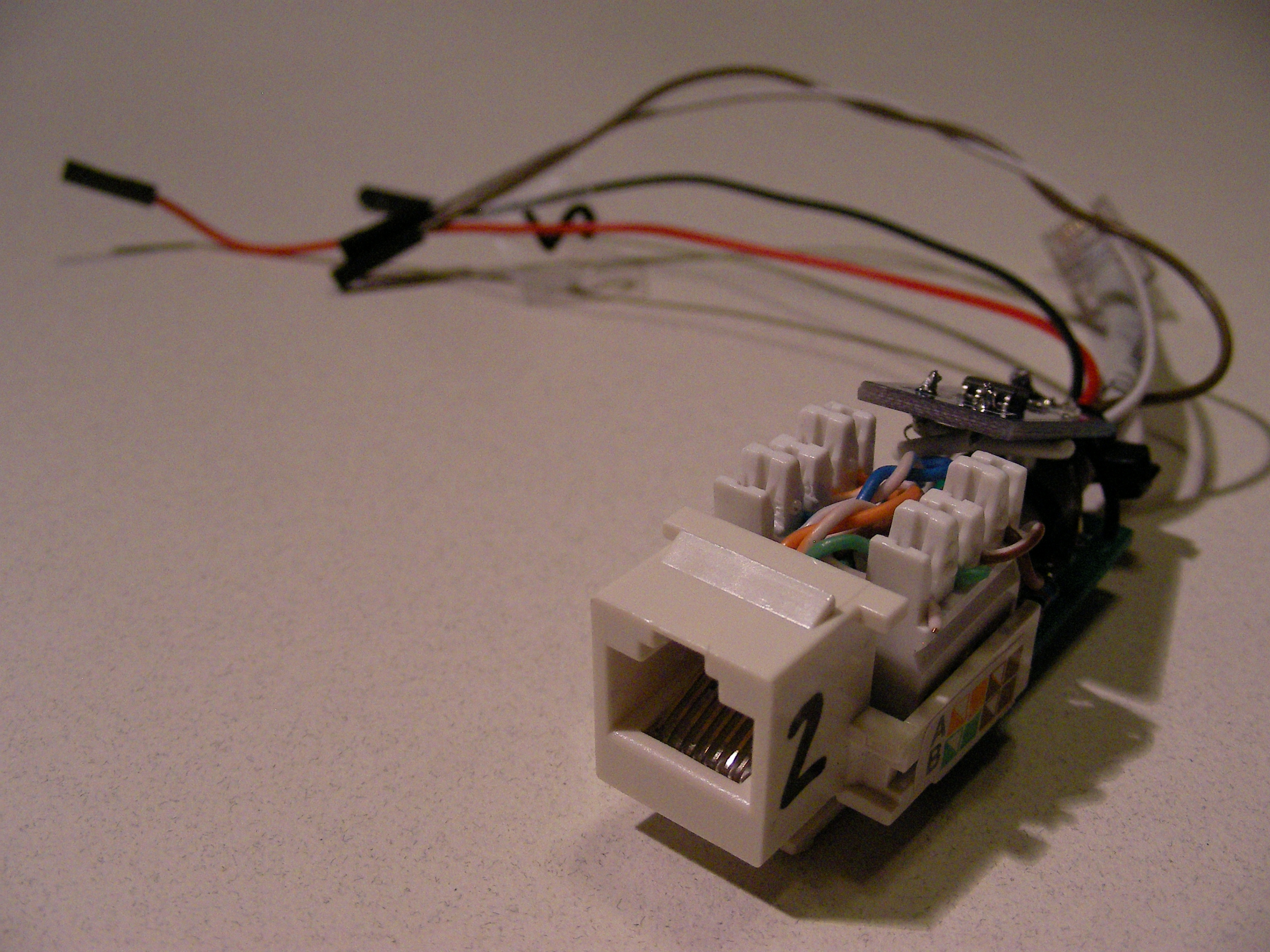

Power meter once mounted:

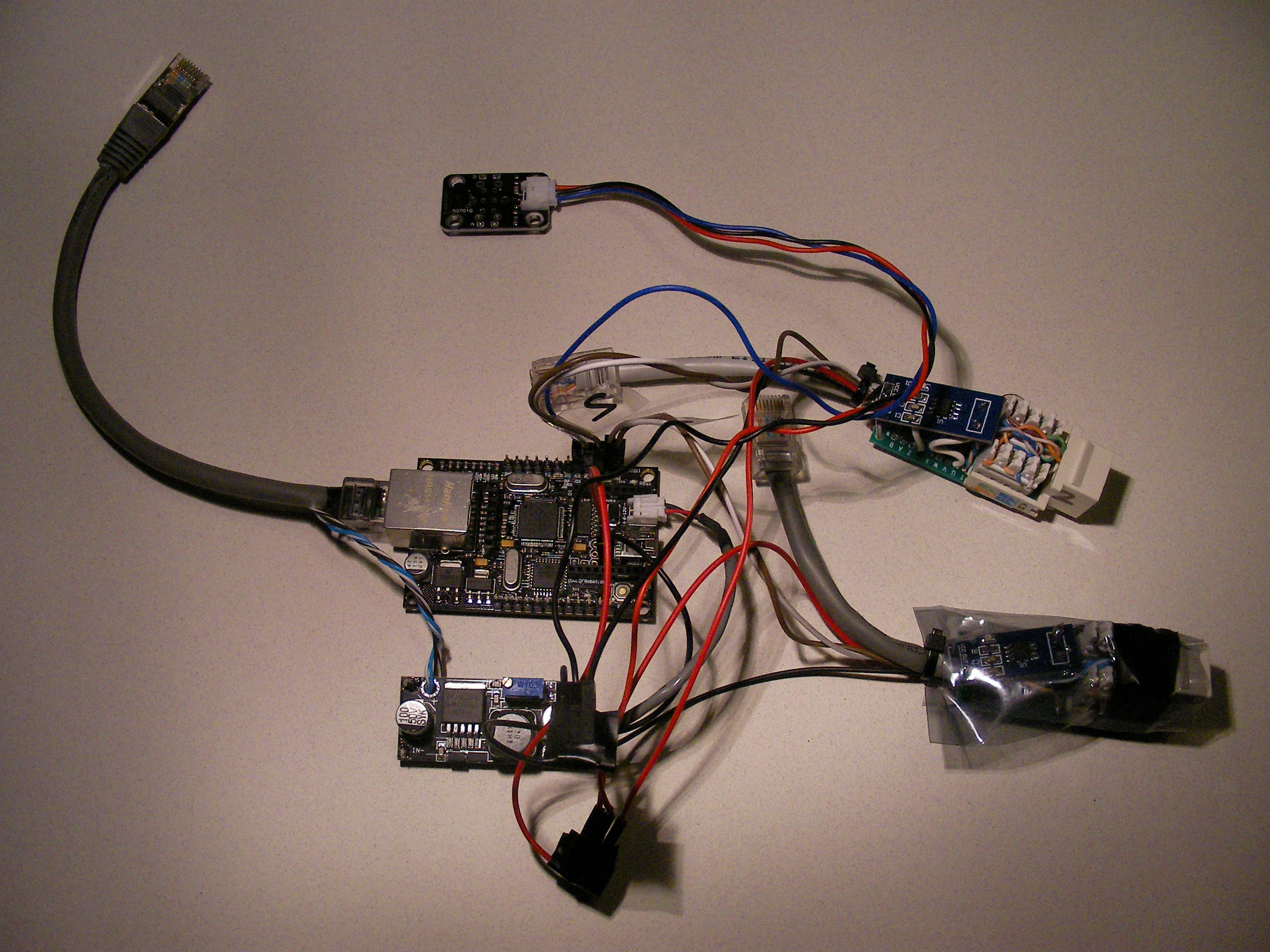

xboard with 2 POE meters and temperature sensor:

Note: The xboard does not support POE. To power it, it is used a POE splitter and a 24V to 6V converter (below the xboard in the figure).

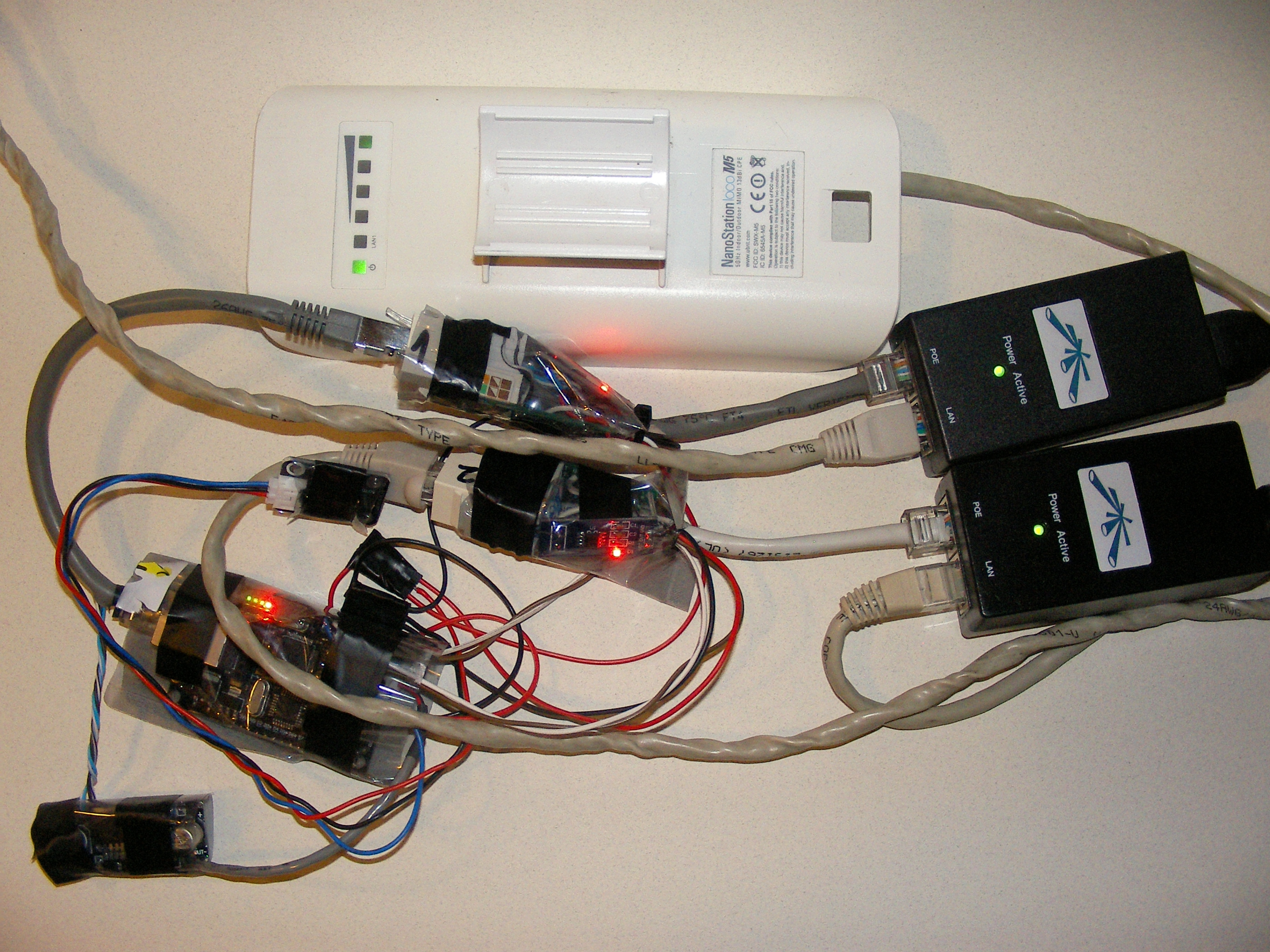

Power meter in action measuring the power consumption of a NanoStation and the xboard itself

Reading the xboard measurements with a web browser
